Standard PE pipe specification table | |
The PE pipe specification table according to CNS2456-2, ISO4427 specifications. SDR Description: D = tube diameter (mm) S = wall thickness (mm) SDR=D/S |

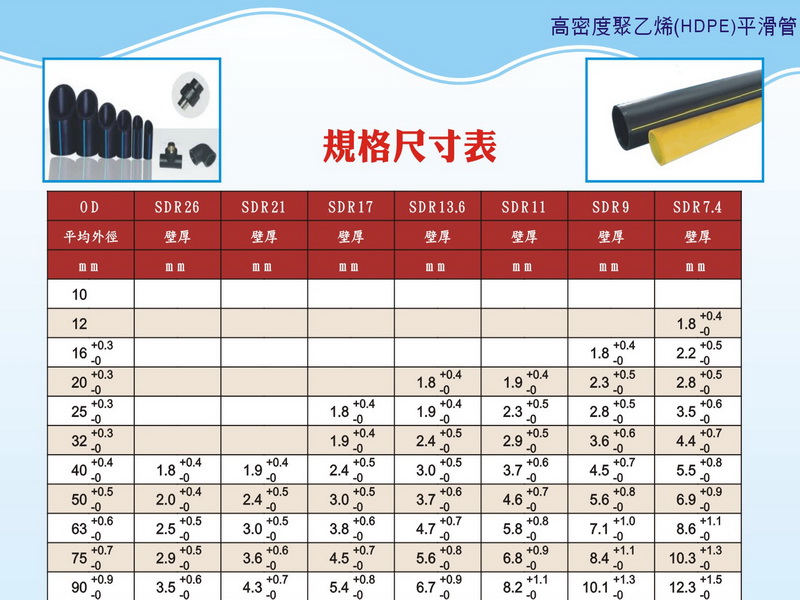

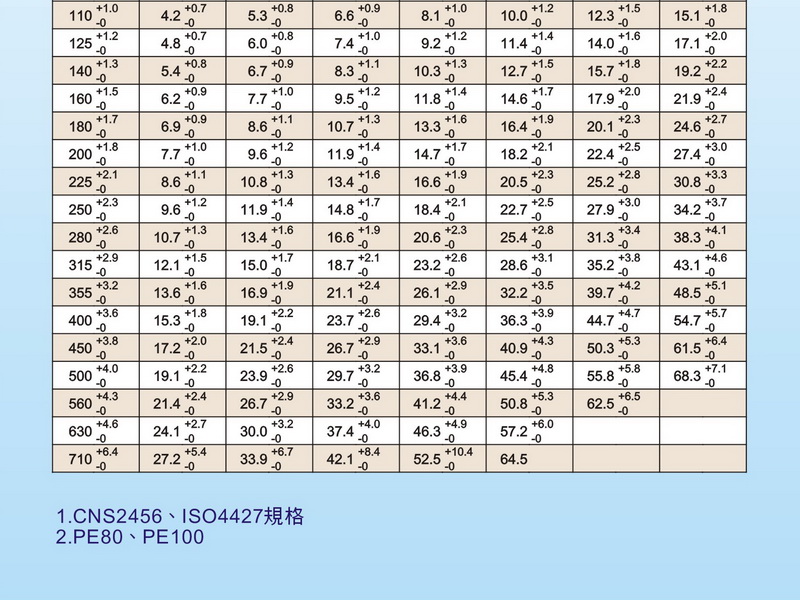

General use PE pipe (polyethylene pipe) HDPE pipe general use tube specifications table
![](/upload/images/%E8%A6%8F%E6%A0%BC%E5%B0%BA%E5%AF%B8%E8%A1%A81.jpg)
![](/upload/images/%E8%A6%8F%E6%A0%BC%E5%B0%BA%E5%AF%B8%E8%A1%A82.jpg)
